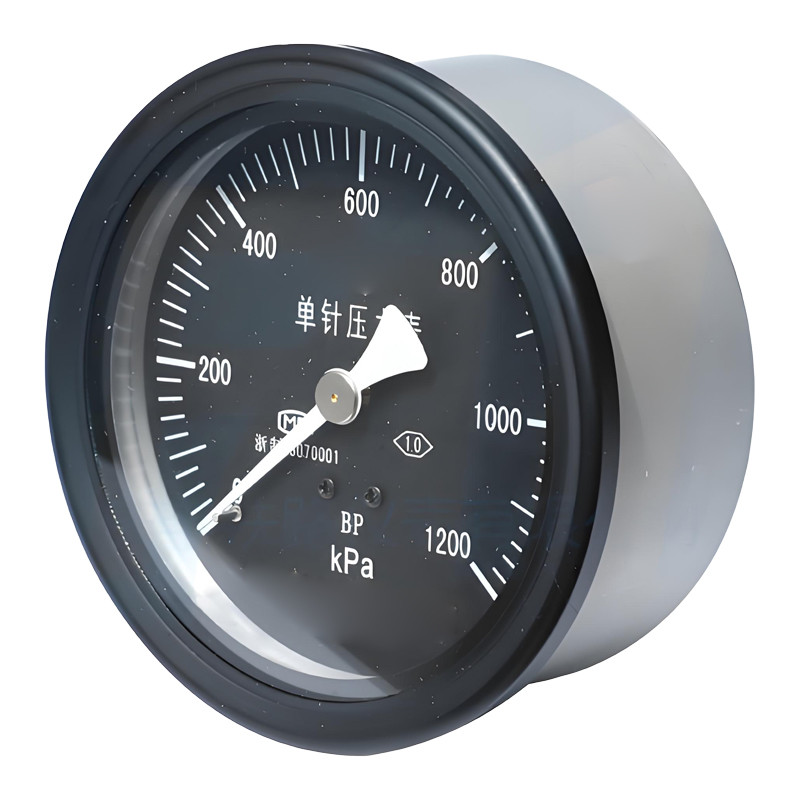

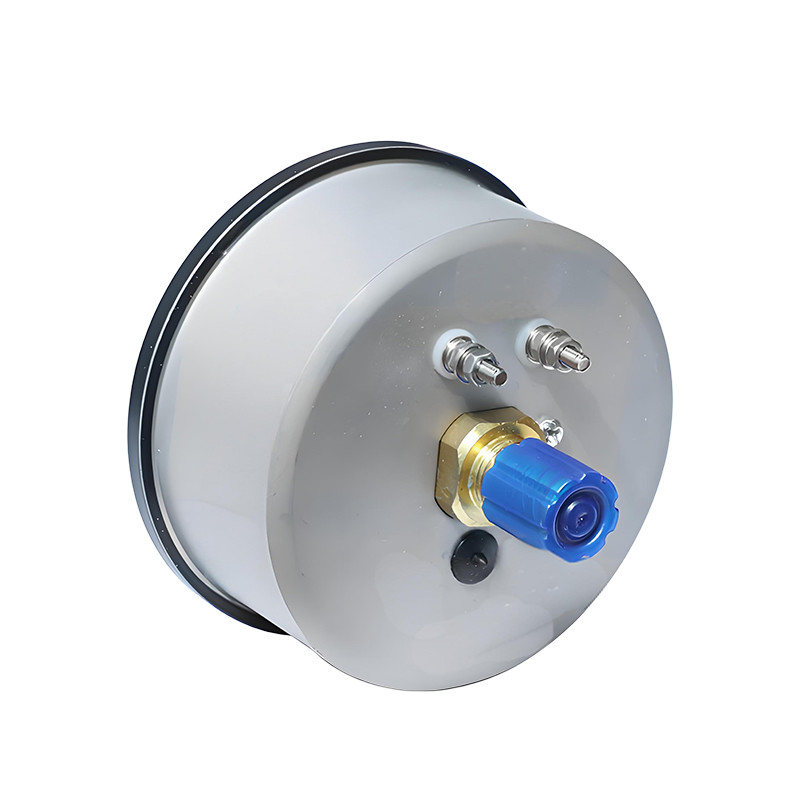

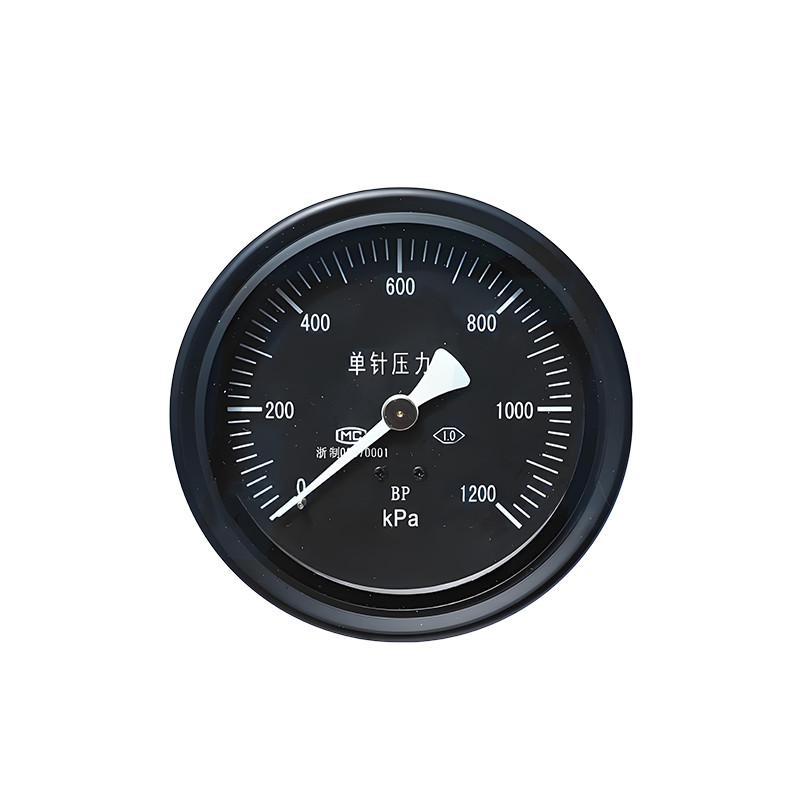

HTCS100 Single-needle Pressure Gauge In Locomotive Air Compressors

  • HTCS100 Single-needle Pressure Gauge In Locomotive Air Compressors
  • HTCS100 Single-needle Pressure Gauge In Locomotive Air Compressors
  • HTCS100 Single-needle Pressure Gauge In Locomotive Air Compressors
Place of Origin China
Nombre de la marca HTR
Model Number HTCS100
Minimum Order Quantity 10pcs
Precio Negociable
Packaging Details Carton box, Wooden case, as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 1,000 pcs/month

Póngase en contacto conmigo para muestras y cupones gratis.

¿Qué es APP?:0086 18588475571

¿Qué quieres decir?: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Measuring Range 0 ~ 1200 kPa Accuracy Class Class 1.0
Operating Temperature -40°C to +70°C, with relative humidity not exceeding 95% Temperature Influence When ambient temperature deviates from 20°C ± 5°C, additional error ≤ 0.4%/10°C
Illumination Voltage DC 110V ±20% Dielectric Strength 1500V / 50Hz, duration 1 minute
Resaltar

Single-needle Pressure Gauge

,

Locomotive Air Compressors Pressure Gauge

,

HTCS100 Pressure Gauge
Deja un mensaje
Descripción de producto

Products Description

The single-needle pressure gauge is primarily used for measuring pressure in locomotive air compressors, hydraulic systems, or air reservoirs. Its operating principle is based on the  deformation of a Bourdon tube under the action of medium pressure. This deformation is  transmitted and amplified through a mechanical linkage, driving the pointer to deflect  across the calibrated dial to indicate the measured pressure value.

This pressure gauge features an axial structure and is capable of measuring two identical or different pressures simultaneously. It is equipped with a ring-shaped LED light source  positioned at the top of the dial, providing soft illumination that enhances visibility and  facilitates observation during nighttime operation.


Specification

Item

Specification

Measuring Range

0 ~ 1200 kPa

Accuracy Class

Class 1.0

Operating Temperature

-40°C to +70°C, with relative humidity not exceeding 95%

Temperature Influence

When ambient temperature deviates from 20°C ±5°C, additional error ≤ 0.4%/10°C

Illumination Voltage

DC 110V ±20%

Dielectric Strength

1500V / 50Hz, duration 1 minute

Standard Compliance

Complies with GB/T 1226-2010 (General Pressure Gauge Standard)

HTCS100 Single-needle Pressure Gauge In Locomotive Air Compressors 0
