Train Locomotive Measuring Pressure HTS-80Z-1 Dual-needle Pressure Gauge

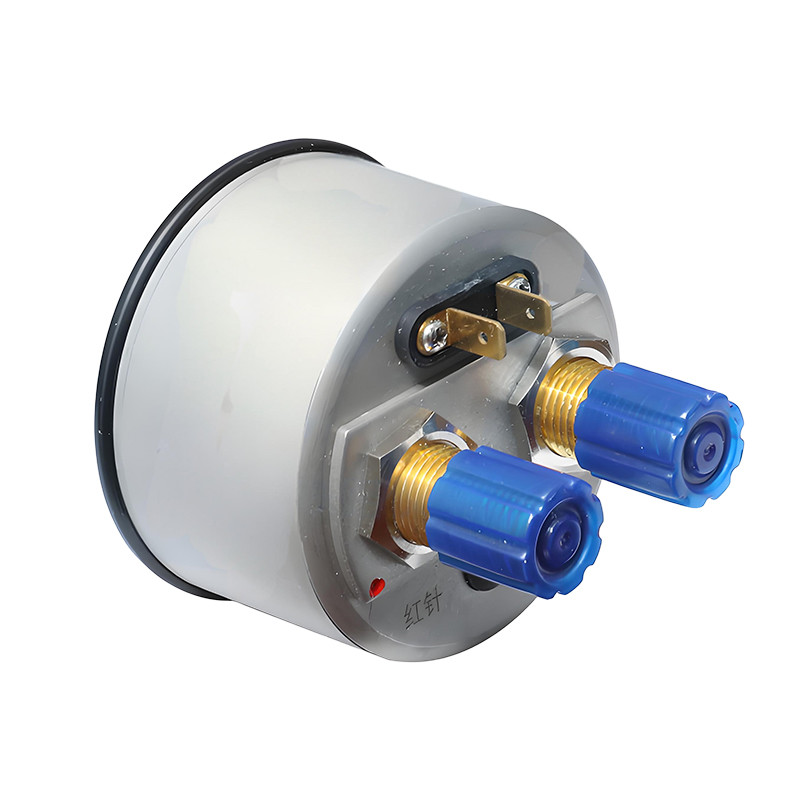

  • Train Locomotive Measuring Pressure HTS-80Z-1 Dual-needle Pressure Gauge

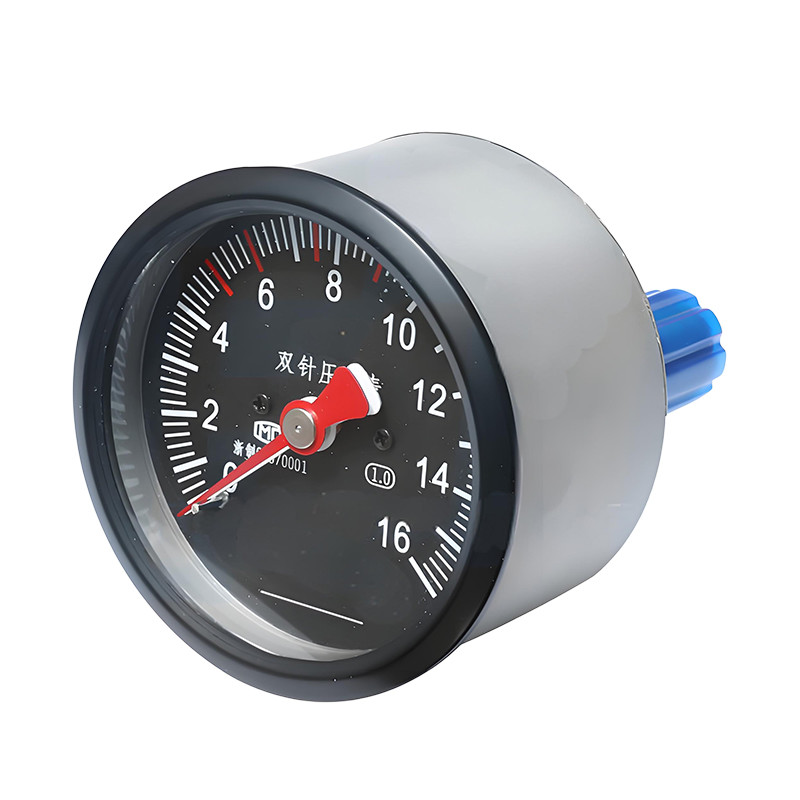

  • Train Locomotive Measuring Pressure HTS-80Z-1 Dual-needle Pressure Gauge

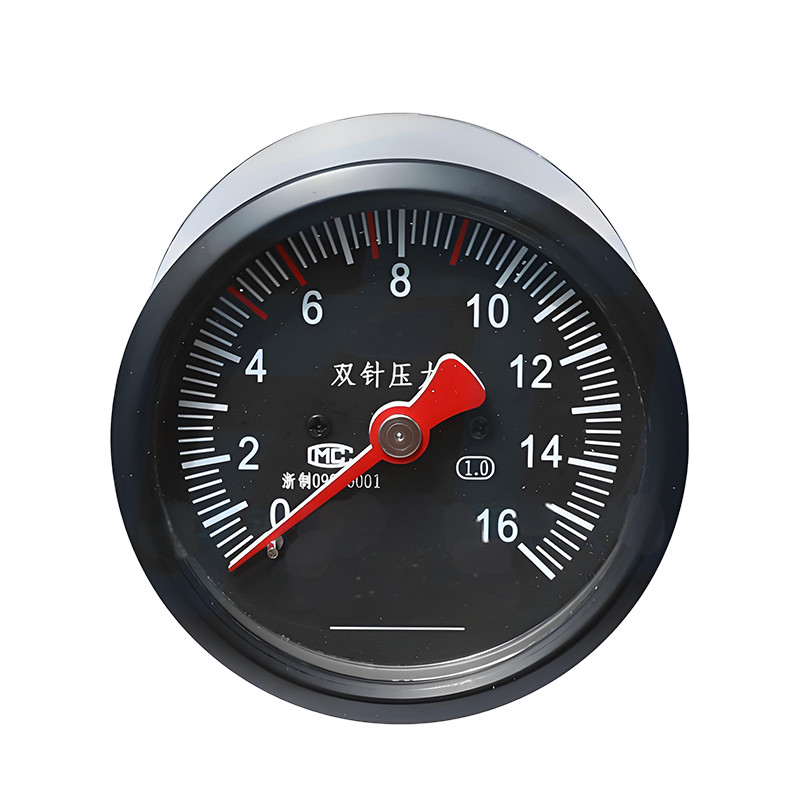

  • Train Locomotive Measuring Pressure HTS-80Z-1 Dual-needle Pressure Gauge
Place of Origin China
Nombre de la marca HTR
Model Number HTS-80Z-1
Minimum Order Quantity 10pcs
Precio Negociable
Packaging Details Carton box, Wooden case, as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 1,000 pcs/month

Póngase en contacto conmigo para muestras y cupones gratis.

¿Qué es APP?:0086 18588475571

¿Qué quieres decir?: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Measuring Range 0 ~ 1600 kPa Accuracy Class Class 1.0
Operating Temperature -40°C to +70°C, with relative humidity not exceeding 95% Temperature Influence When ambient temperature deviates from 20°C ± 5°C, additional error ≤ 0.4%/10°C
Illumination Voltage DC 24V ±20% Dielectric Strength 1500V / 50Hz, duration 1 minute
Resaltar

HTS-80Z-1 Dual-needle Pressure Gauge

,

Locomotive Measuring Pressure Gauge

,

HTS-80Z-1 Pressure Gauge
Deja un mensaje
Descripción de producto

Products Description

The dual-needle pressure gauge is primarily used for measuring pressure in locomotive air compressors, hydraulic systems, or air reservoirs. Its working principle is based on the  deformation of a Bourdon tube under the action of medium pressure. This deformation is  transmitted and amplified through a mechanical linkage, which drives the pointer to  deflect along the dial scale, indicating the measured pressure value.

This pressure gauge features an axial structure and is capable of measuring two identical or different pressures simultaneously. It is equipped with a soft LED ring light positioned at  the upper part of the dial, providing gentle illumination to facilitate clear reading during  night-time operation.


Specification

Item

Specification

Measuring Range

0 ~ 1600 kPa

Accuracy Class

Class 1.0

Operating Temperature

-40°C to +70°C, with relative humidity not exceeding 95%

Temperature Influence

When ambient temperature deviates from 20°C ±5°C, additional error ≤ 0.4%/10°C

Illumination Voltage

DC 24V ±20%

Dielectric Strength

1500V / 50Hz, duration 1 minute

Standard Compliance

Complies with GB/T 1226-2010 (General Pressure Gauge Standard)

Train Locomotive Measuring Pressure HTS-80Z-1 Dual-needle Pressure Gauge 0
