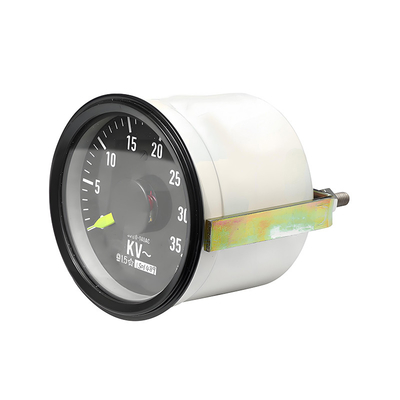

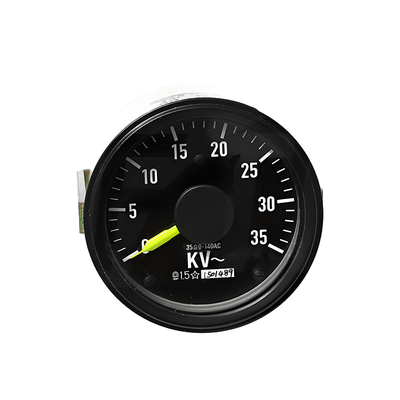

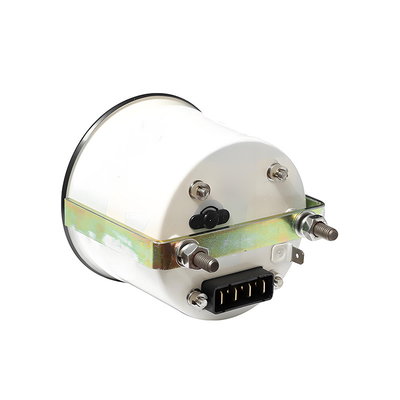

Railway Vehicle Electric Locomotives HTS8/9a Single-needle Catenary Voltage Meter

  • Railway Vehicle Electric Locomotives HTS8/9a Single-needle Catenary Voltage Meter
  • Railway Vehicle Electric Locomotives HTS8/9a Single-needle Catenary Voltage Meter
  • Railway Vehicle Electric Locomotives HTS8/9a Single-needle Catenary Voltage Meter
Place of Origin China
Nombre de la marca HTR
Model Number HTS8/9a
Minimum Order Quantity 10pcs
Precio Negociable
Packaging Details Carton box, Wooden case, as per requires
Delivery Time 15-50 days, depends on QTY
Payment Terms L/C,T/T,Western Union,Paypal
Supply Ability 1,000 pcs/month

Póngase en contacto conmigo para muestras y cupones gratis.

¿Qué es APP?:0086 18588475571

¿Qué quieres decir?: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Accuracy ±1.5% Internal Illumination LED lighting, 24VDC or 110VDC
Operating Environment -25°C to +50°C, relative humidity ≤ 95% Insulation Strength 1000V, 50Hz sinusoidal AC, duration 1 minute
Vibration Resistance Category 1, Class B Protection Rating Front panel: IP54; Connector: IP40
Weight Not more than 0.8 kg
Resaltar

HTS8/9a Catenary Voltage Meter

,

Railway Vehicle Catenary Voltage Meter

,

Single-needle Catenary Voltage Meter
Deja un mensaje
Descripción de producto

Products Description

The HTS8/9a is a single-needle analog voltmeter designed for real-time monitoring of high-voltage overhead catenary systems in electric locomotives and EMUs. Specifically rated for -35kV applications, this instrument accurately displays the voltage of the traction power  network. It features a modular design, high insulation performance, and strong resistance  to vibration and electromagnetic interference. Equipped with a backlit dial (LED illumination optional), the HTS8/9a provides clear visibility under varying lighting conditions. Its robust structure and long service life make it suitable for harsh railway environments, ensuring operational safety and reliable voltage indication.


Specification

Item

Specification

Accuracy

±1.5%

Internal Illumination

LED lighting, 24VDC or 110VDC

Operating Environment

-25°C to +50°C, relative humidity not exceeding 95%

Insulation Strength

1000V, 50Hz sinusoidal AC, duration 1 minute

Vibration Resistance

Category 1, Class B (in accordance with TB/T 3058)

Protection Rating

Front panel: IP54; Connector: IP40

Weight

Not more than 0.8 kg

Connector

0.8 × 6.3 mm plug-in terminal
