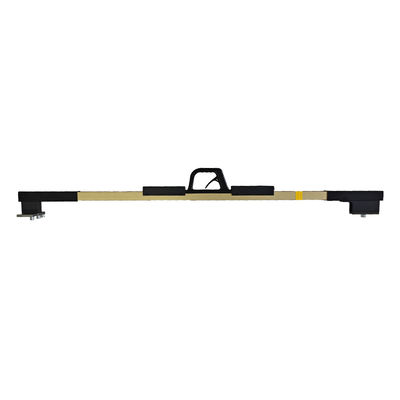

1435MM Mechanical Digital Track Gauge

  • 1435MM Mechanical Digital Track Gauge
  • 1435MM Mechanical Digital Track Gauge
  • 1435MM Mechanical Digital Track Gauge
  • 1435MM Mechanical Digital Track Gauge
  • 1435MM Mechanical Digital Track Gauge
  • 1435MM Mechanical Digital Track Gauge
Lugar de origen PORCELANA
Nombre de la marca HTR
Cantidad de orden mínima 1000
Precio Ngotiable
Detalles de empaquetado Envasado de exportación
Tiempo de entrega Ngotiable
Condiciones de pago L/C, T/T
Capacidad de la fuente 50000 PCS por mes

Póngase en contacto conmigo para muestras y cupones gratis.

¿Qué es APP?:0086 18588475571

¿Qué quieres decir?: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Nombre del producto Medidor de vía digital Calibre 1384-1470 mm
Controlar el medidor de ferrocarril 1364-1450 mm Distancia a espalda 1344-1430 mm
Espacio libre de brida 20-107 mm No puedo. -200-+200 mm
Visualización Oleado Voltaje de potencia DC3.4V ~ 5.2V (batería recargable)
Rango de temperatura de trabajo -30 ℃～+55 ℃ Rendimiento de aislamiento ＞ 1mΩ
Peso ≤3kg
Resaltar

1435mm mechanical track gauge

,

digital railway track gauge

,

railway track gauge with warranty
Deja un mensaje
Descripción de producto

Product Description
The T type digital track gauge is mainly used to measuring the track gauge ,cant, check rail gauge , back to back distance and flangeway clearance. The device is easy to operate ,and its measuring speed is very fast , which can be used either day or night. It is an ideal measurement tool for the railway engineers.

Product Performance Feature

Our digital track gauge is a high-precision railway inspection tool ,which developed according to the current railway situation of all weather, complex railway line , large temperature difference etc., It is composed of electronic and mechanical parts, the electronic part is integrated by microelectronic technology, single-chip technology, sensing technology, signal processing technology and other high-tech .This product has the following features:
· Stable performance and anti-electromagnetic interference: suitable for electrification, non-electrification, automatic block or other block section.
· Fast measurement speed: When used, the measured data can be displayed without additional manual operation after the measuring point is confirmed.
· High measuring accuracy: Precision transmission device with intelligent data processing system, it can be fast calibration. The built-in temperature compensation eliminates the material thermal expansion and cold contraction on the track gauge and super elevation measurement data, which improved the measurement accuracy.
· Large OLED display: the new light-emitting OLED material is adopted. Even in strong sunlight, the
measurements are still clear and intuitive. The characteristics of the instrument are particularly prominent when it is used at night or in tunnels.
· Wide temperature range: -30℃ ~ +55℃ ,it can meet the temperature requirements in most areas.
· Quick calibration operation: simple measurement process.
· Power saving function: no operation within 15 minutes, the system will automatically shut down.
· Large capacity battery: long standby time
· Insulated design
· Waterproof: could use in rainy day

Product Performance

Reference Value

Scope of Use

1435mm standard gauge railway with operating speed ≤ 250 km/h

Track Gauge

1384-1470mm

Measurement Uncertainty

±0.25mm

Check Rail Gauge

1364-1450mm

Back-to-back Distance

1344-1430mm

Flangeway Clearance

20-107mm

Cant

-200-+200mm

Measurement Uncertainty

±0.45mm

Display Screen

OLED

Power Voltage

DC3.4V～5.2V(Rechargeable Battery)

Working Temperature Range

-30℃～+55℃

Insulation Performance

＞1MΩ

Weight

≤3kg

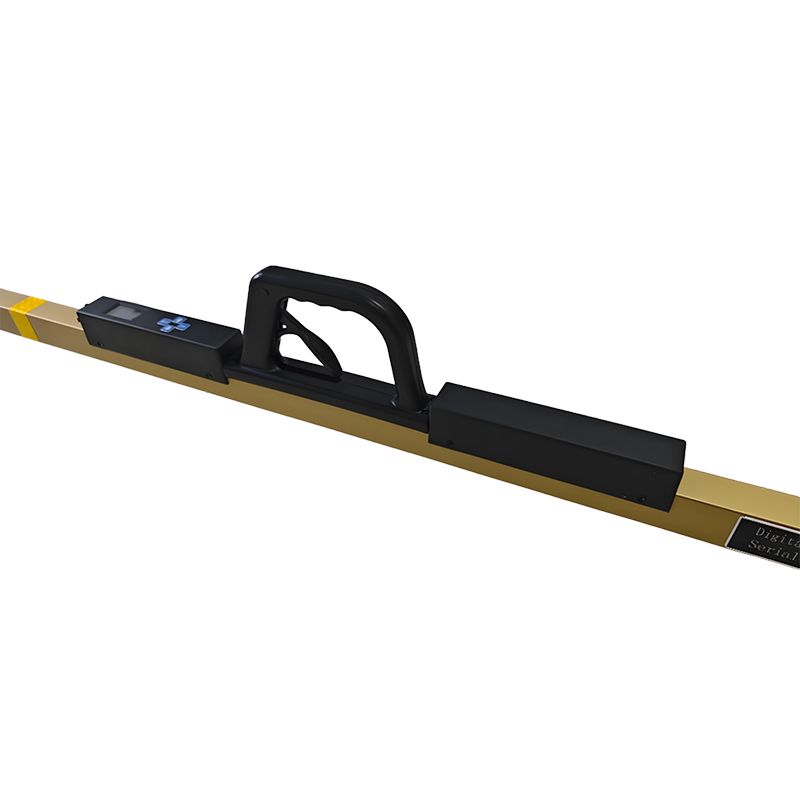

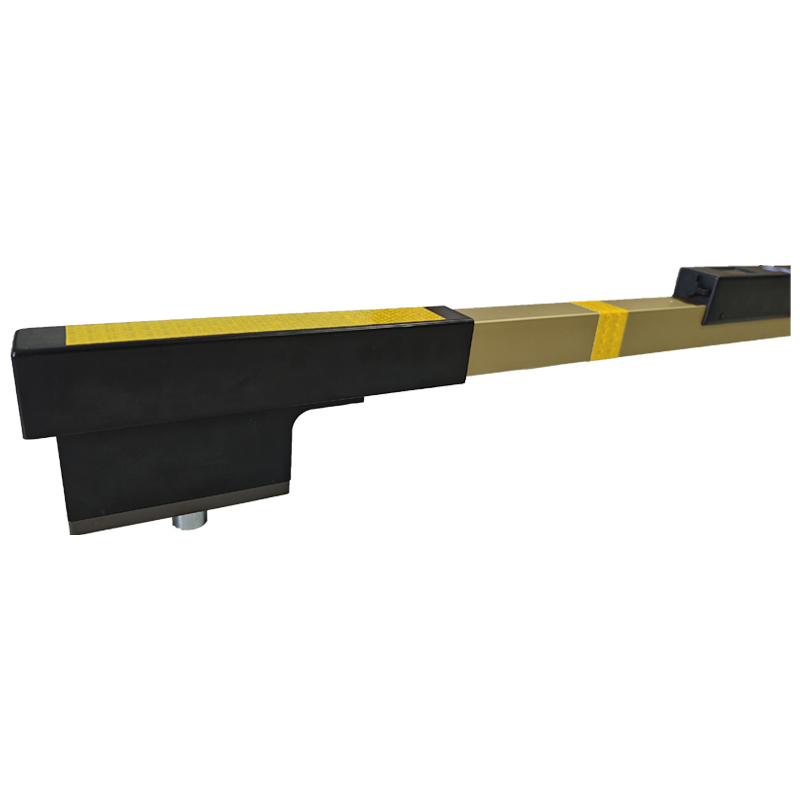

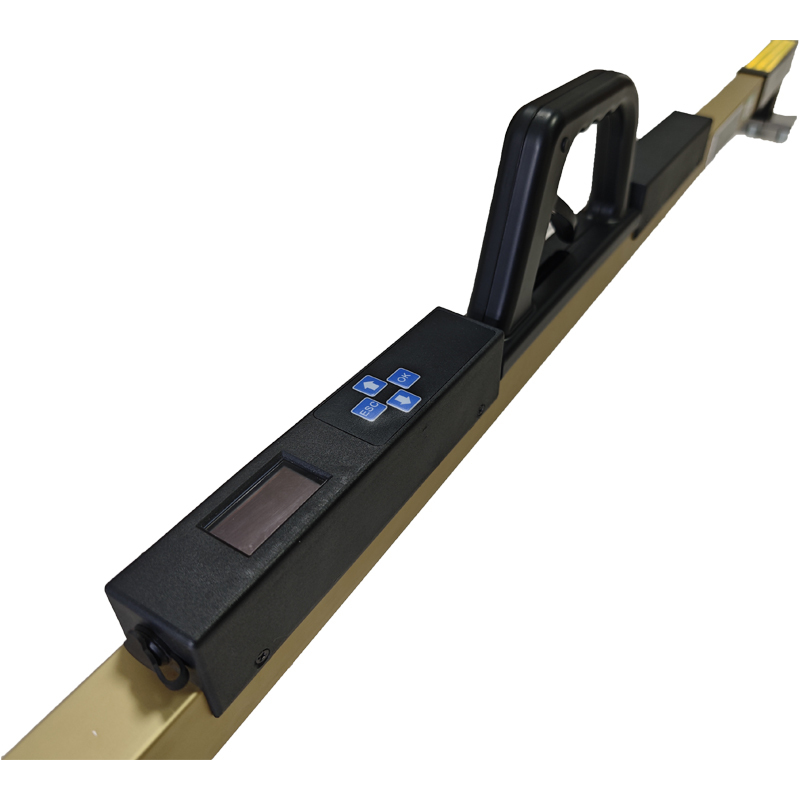

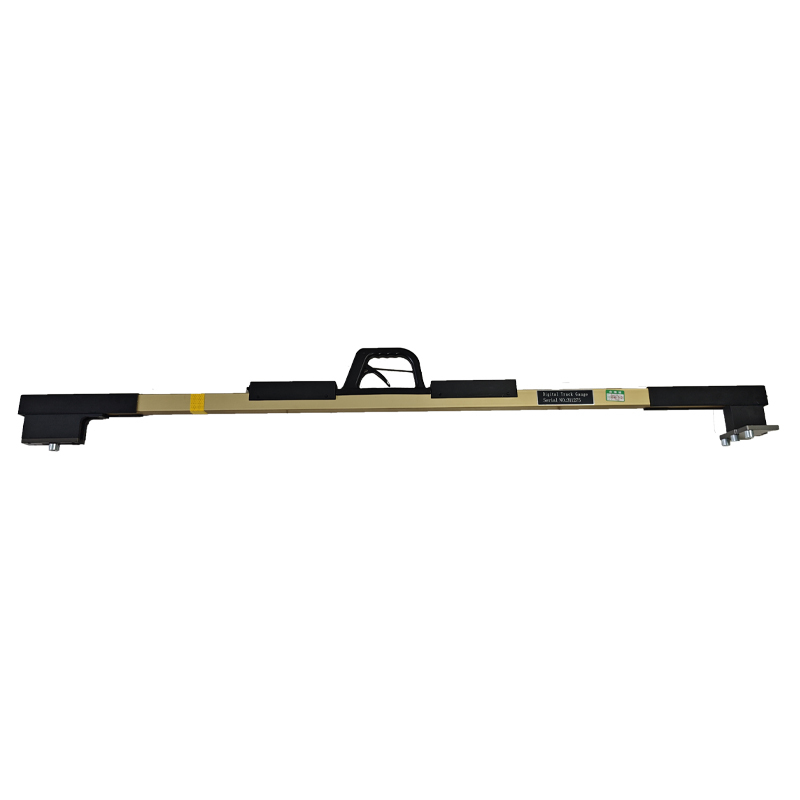

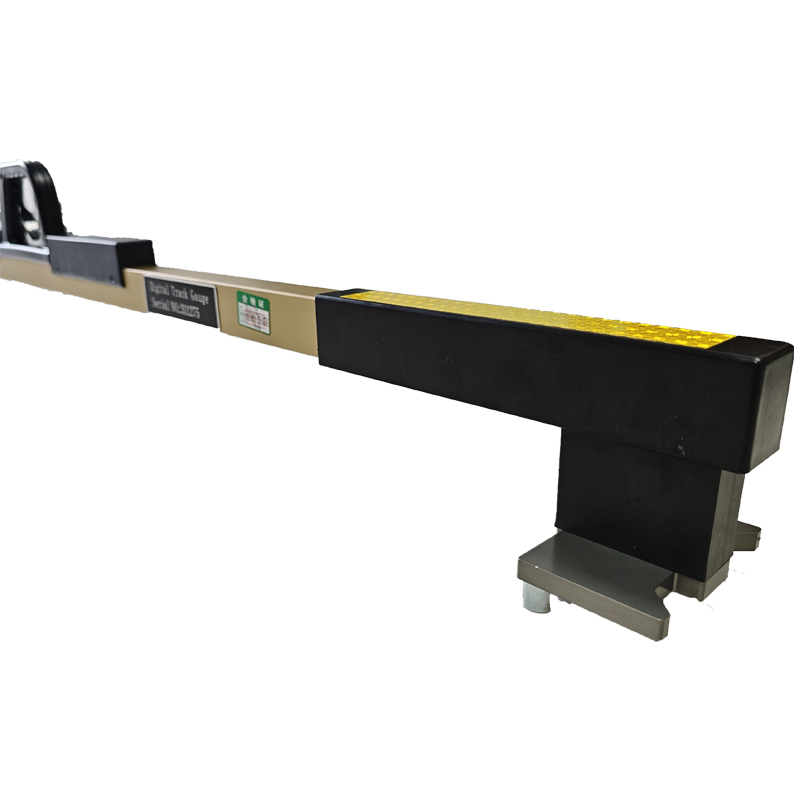

1435MM Mechanical Digital Track Gauge 0

1435MM Mechanical Digital Track Gauge 1

1435MM Mechanical Digital Track Gauge 2

1435MM Mechanical Digital Track Gauge 3
