HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench

  • HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench
  • HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench
Lugar de origen Porcelana
Nombre de la marca HTR
Certificación EN50155, EN45545, GB/T 25119, etc.
Número de modelo HTR2820
Cantidad de orden mínima 100 piezas
Precio Negociable
Detalles de empaquetado La caja del cartón, caso de madera, según requiere
Tiempo de entrega 15-50 días, dependen del QTY
Condiciones de pago LC, T/T, Western Union, Paypal
Capacidad de la fuente 1.000 PC/mes
Datos del producto
Rango de medición 0 kPa ~ 110 kPa Tiempo de medición 45 s (incluida la sujeción)
Distancia de compresión del resorte 25 milímetros Exactitud de la medida de la presión ±1,5kPa
Resaltar

Passenger coach grounding device test bench

,

Railway axle-end spring pressure tester

,

HTR2820 grounding device test equipment
Deja un mensaje
Descripción de producto
Product Overview

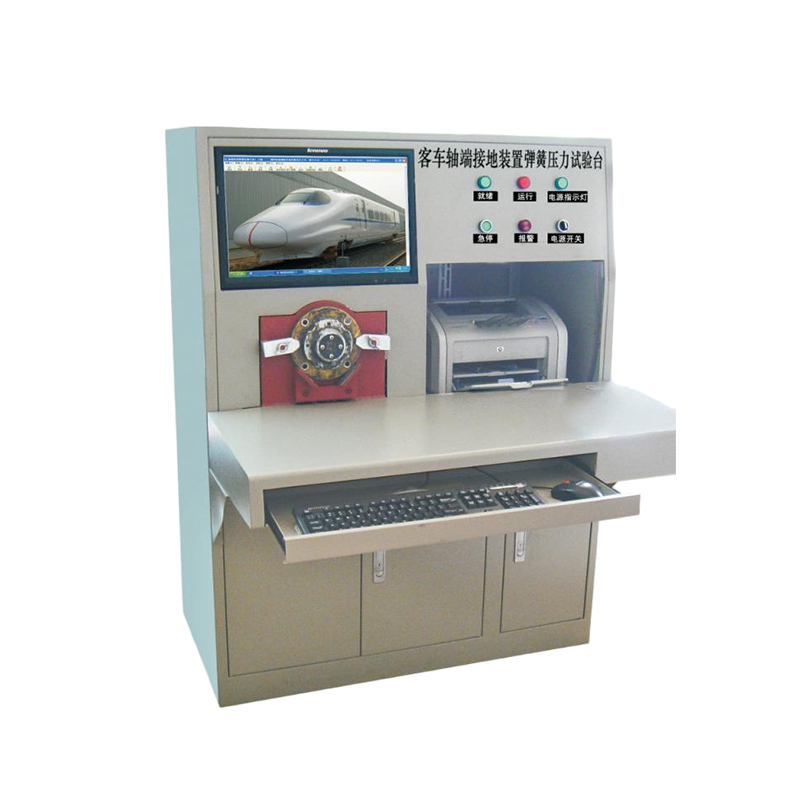

The HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench is a specialized inspection system that integrates pressure sensors and microcomputer control technology. It is specifically designed to detect the spring pressure and average value deviation of the four carbon brushes within a grounding assembly.

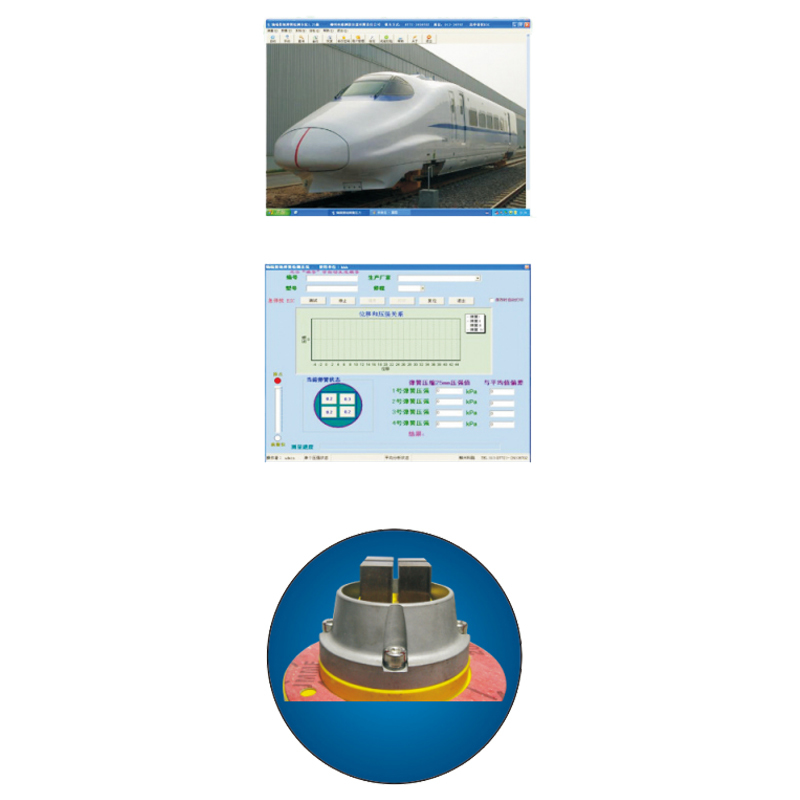

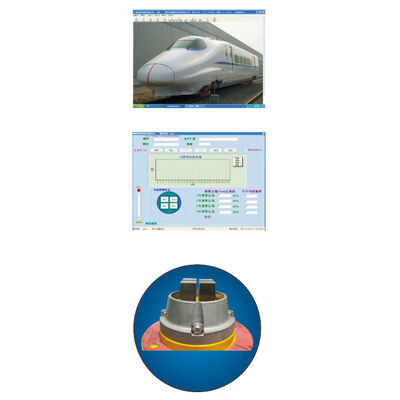

The device can simultaneously measure all four spring pressures and their deviations in a single test cycle. By utilizing system software for comprehensive data analysis, it can accurately identify jamming or mechanical binding within the grounding device.

Main Product Features
1. This test bench can simultaneously detect 1 grounding body and 4 carbon brush springs, which is unique among domestic similar products, and its detection efficiency is 4 times that of similar products.
2. It features high accuracy, fast measurement speed, and supports data query, printing, storage and real-time transmission to the KMIS system.
3. It can accurately detect and judge the jamming condition of the grounding device.

Main Technical Indicators
Measuring Range 0 kPa ~ 110 kPa
Measurement Time 45 s (including clamping)
Spring Compression Distance 25 mm
Pressure Measurement Accuracy ±1.5 kPa


HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench 0

HTR2820 Passenger Coach Axle-End Grounding Device Spring Pressure Test Bench 1
