HTR2024-KC Automatic Laser Wheelset Inspection Machine

  • HTR2024-KC Automatic Laser Wheelset Inspection Machine
Lugar de origen Porcelana
Nombre de la marca HTR
Certificación EN50155, EN45545, GB/T 25119, etc.
Número de modelo HTR2024-KC
Cantidad de orden mínima 100 piezas
Precio Negociable
Detalles de empaquetado La caja del cartón, caso de madera, según requiere
Tiempo de entrega 15-50 días, dependen del QTY
Condiciones de pago LC, T/T, Western Union, Paypal
Capacidad de la fuente 1.000 PC/mes
Datos del producto
Resaltar

automatic laser wheelset inspection machine

,

railway wheelset inspection equipment

,

laser wheelset inspection system
Deja un mensaje
Descripción de producto

Product Overview

The HTR2024-KC Automatic Laser Wheelset Inspection Machine for Passenger Coaches is a sophisticated system comprising a main frame, a wheelset pre- inspection station, and dedicated modules for thrusting, lifting, rotation, and precision measurement. The assembly is further integrated with a hydraulic system, an electrical control unit, and a high-performance microcomputer for data acquisition and processing. Characterized by high measurement accuracy, the equipment fully complies with all relevant industry standards.

Main Product Features
· Automatically measures corresponding technical parameters, performs conformity judgment and generates records in accordance with the requirements
specified in TG/CL 206-2013 Rules for Assembly, Maintenance and Management of Railway Passenger Car Wheelsets and Axles.
· Equipped with measurement item selection function. Operators can select measurement parameters as required. After selection, the system performs
automatic measurement with intelligent prompts. It is easy to operate, provides detailed work prompts and wizards, and can judge whether the measurement
results are qualified based on the preset limit values.
· Has intelligent automatic calibration and self-calibration functions.
· The operation interface is in Chinese, conforms to domestic operation habits, and has good human-machine interaction function.
· Adopts world-leading high-precision displacement sensors and non-contact measurement method, which will not damage the workpiece.


Main Technical Indicators

Detection Parameters

Measuring Range (mm)

Maximum Permissible Error (mm)

Repeatability (mm)

Wheel Diameter

750 ~ 930

-0.3 ~ 0

≤0.1

Flange Height

24 ~ 38

±0.1

≤0.05

Flange Thickness

20 ~ 35

-0.2 ~ 0

≤0.05

Rim Thickness

22 ~ 70

-0.5 ~ 0

≤0.1

Rim Width

125 ~ 145

-0.5 ~ 0

≤0.1

Wheelset Inner Distance

1345 ~ 1365

±0.2

≤0.1

Vertical Wear

-2 ~ 2

-0.2 ~ 0

≤0.05

Brake Disc Center Distance

700 ~ 1000

±0.4

≤0.1

Brake Disc Wear

0 ~ 50

±0.2

≤0.1

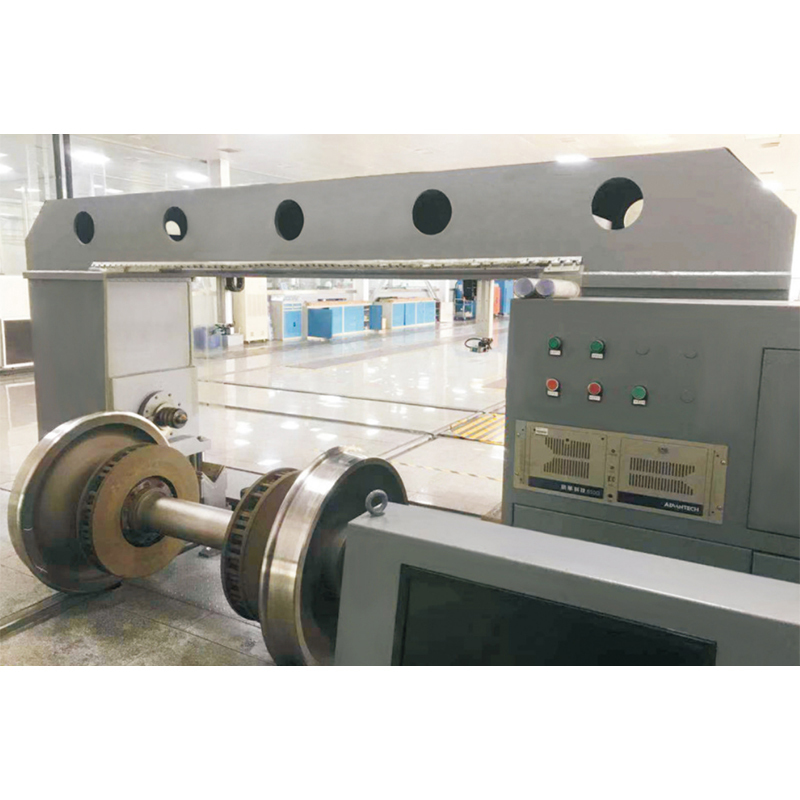

HTR2024-KC Automatic Laser Wheelset Inspection Machine 0
